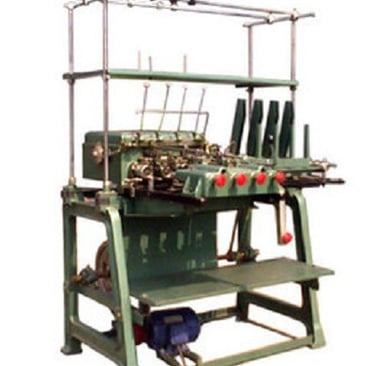

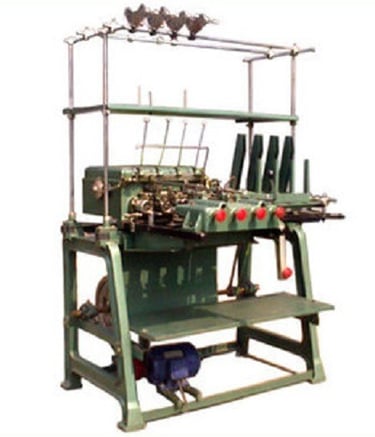

Pirn winding machine

pirn winding machine works with higher speed, each head is suitable for different types of pirn as well as yarn, least operators are required to operate machine..

1/17/20252 min read

Objectives of Pirn Winding Machine:

  • Yarn is wound onto quills efficiently and at a consistent and optimal speed in order to achieve high productivity.

  • During the winding process, the pirn yarn winding machine maintains a constant tension on the yarn. It is critical to maintain a consistent tension for wound yarn packages, so it includes tensioning devices or mechanisms to ensure that the tension remains within the desired range.

  • As part of the winding process, the machine aims to preserve the quality of the yarn. It should minimize yarn breakage, tangling, or other forms of damage that could occur. The machine ensures the integrity of the yarn during subsequent textile processes by handling it carefully.

  • A quill or pirn yarn winding machine can handle different types of yarn, including fiber compositions, thicknesses, and textures. The machine should be adjustable or adaptable to accommodate different yarn characteristics.

Working Principle of Quill or Pirn Winding Machine:
  • A pirn winding machine feeds large packages at the unwinding zone. The large packages supply the yarn used in the production of pirn bobbins. In the creel, the yarn package is held in an optimal position. The yarn is then passed through the yarn guide. The yarn guide ensures accurate and smooth winding of the yarn onto the quill by aligning and positioning it properly.

  • The yarn is now passed through the tension device. During the winding process, a tension device controls and regulates the tension of the yarn. This ensures that the yarn is under constant tension while being wound onto the quill or any other packaging. In order to achieve uniform winding and prevent yarn breakage, snarls, or uneven package formation, maintaining proper tension is crucial.

  • The yarn is then passed through a stop motion as a next step. The purpose of the stop motion is to stop winding if the yarn breaks or runs out. Stop motions vary from machine to machine. When the yarn is present, a counter-weighted or spring-loaded sensing device holds inactive, causing the sensing device to activate. If this restraining yarn breaks or runs out, it becomes inactive and the sensing device becomes active. Without mechanical contact, electronic stop motions detect the yarn.

  • The yarn is now passed through the guide. As soon as yarn has passed through the guide, it goes to the traversing mechanism region.

  • As mentioned previously, the quill winding machine is equipped with a traverse mechanism, which moves the quill back and forth horizontally while a yarn is being wound. The traverse mechanism prevents excessive yarn build-up in one area of the quill by creating a uniform distribution of yarn across the quill.

  • A quill holder or spindle is set up with empty quills placed in it. The machine is then ready to use.

  • When the desired amount of yarn has been wound onto the quill, or when the quill has reached its maximum capacity, the machine automatically stops, and the yarn is then cut, and the quill is removed from the machine.

  • As soon as the full quill is removed, an empty quill is placed in the quill holder, and the process can be repeated again.

Conclusion:

Quill or pirn yarn Winding Machines offer numerous benefits to the textile industry and improve yarn winding efficiency. Our analysis has highlighted the features and advantages of the Quill machine, emphasizing its ability to enhance productivity, ensure quality, and streamline operations. Quill Yarn Winding Machines can handle a wide range of yarn types with flexibility and versatility. Manufacturers can adapt this machine to different production requirements by adjusting the tension settings and customizing the winding patterns. With this adaptability, the machine’s utility and application ranges across a wide range of textile industries.
